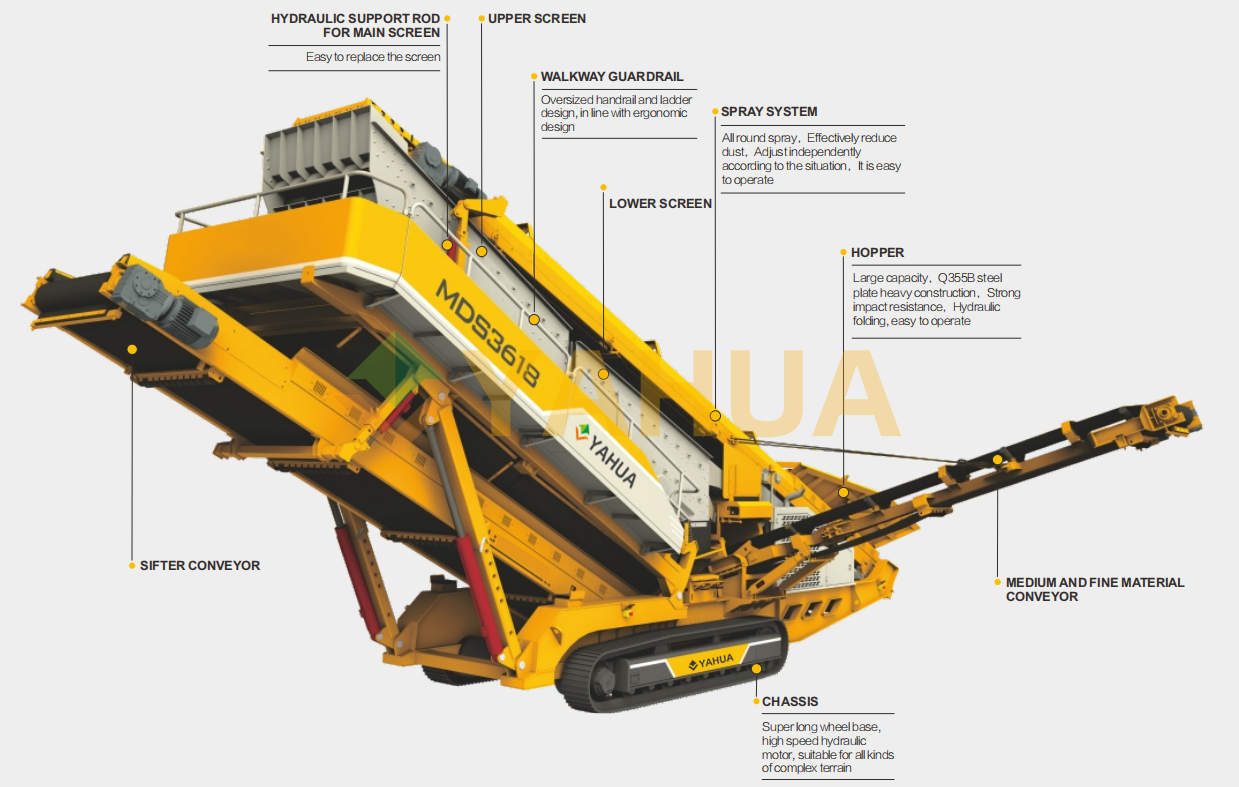

MS Series Tracked Mobile Screening Station is equipped with an efficient vibrating screen and automatic folding belt conveyor. It is efficient screening, easy to operate, and can meet the fine screening of different materials. It is suitable for screening finished materials after crushing stage.
Screening stage of different materials under various working conditions such as metal and non-metal ores, construction waste, construction aggregate production, highways/railways, road and bridge construction, etc
MS Series Tracked Mobile Screening Station is equipped with an efficient vibrating screen and automatic folding belt conveyor. It is efficient screening, easy to operate, and can meet the fine screening of different materials. It is suitable for screening finished materials after crushing stage.
The whole machine has a wide range of applications, high intelligence, simpler operation, convenient transfer, high screening efficiency, and can choose from three power modes: external power supply, gas-electric hybrid, and full hydraulic drive.
Model | MS-5618 | MS-3618E | MS-3618 |
Feeder | |||
---|---|---|---|
Volume(m³) | 2.8 | 2.8 | 2.8 |
Feeding height(mm) | 2252 | 2252 | 2252 |
Max Feed(mm) | 200 | 200 | 200 |
Processing capacity(t/h) | 400 | 350 | 350 |
Screening | |||
layer number of mesh | 4 | 3 | 3 |
Vibrating screen length×width(mm) | 6000×1800 | 6000×1800 | 6000×1800 |
Conveyor | |||
Main conveyor width(mm) | 1000 | 1000 | 1000 |
Width of conveyor belt(mm) | 500 | 500 | 500 |
Under screen conveyor width × Stacking Height(mm) | 1000×4280 | 1000×3422 | 1000×3422 |
Side 1 belt machine width × Stacking Height(mm) | 500×3500 | 500×3570 | 500×3570 |
Side 2 belt machine width × Stacking Height(mm) | 650×3500 | 650×3697 | 650×3697 |
Side 3 belt machine width × Stacking Height(mm) | 650×3500 | 650×3560 | 650×3560 |
Side 4 belt machine width × Stacking Height(mm) | 650×3500 | / | / |
Parameters | |||
Total power(kw) | 108 | 64.5 | 64.5 |
Speed(km/h) | 200-500 | 200-500 | 200-500 |
Speed(km/h) | 0.6-1 | 0.6-1 | 0.6-1 |
Total Weight(t) | 45 | 36 | 34 |
Processing capacity(t/h) | 18440×3050×4060 | 14808×3539×3799 | 14808×3539×3799 |
