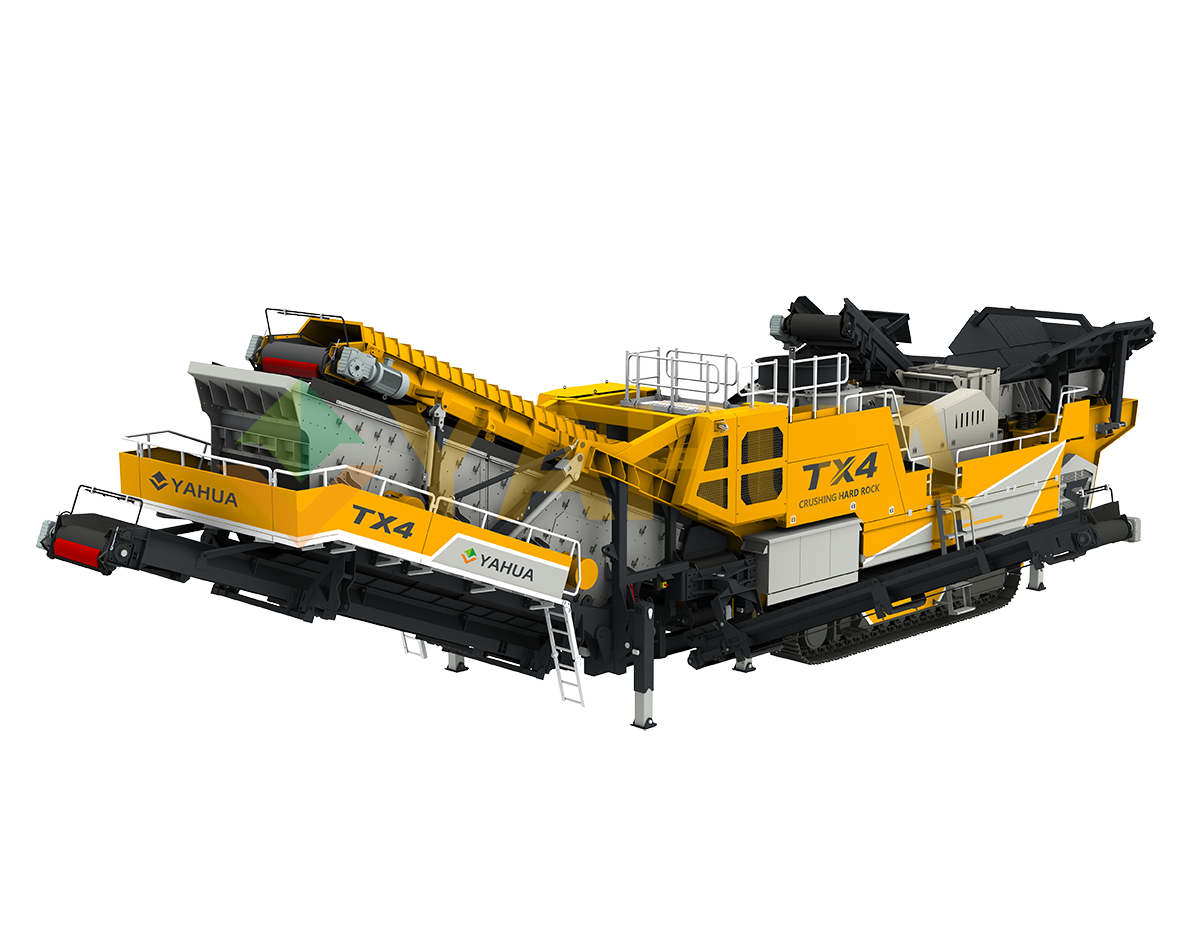

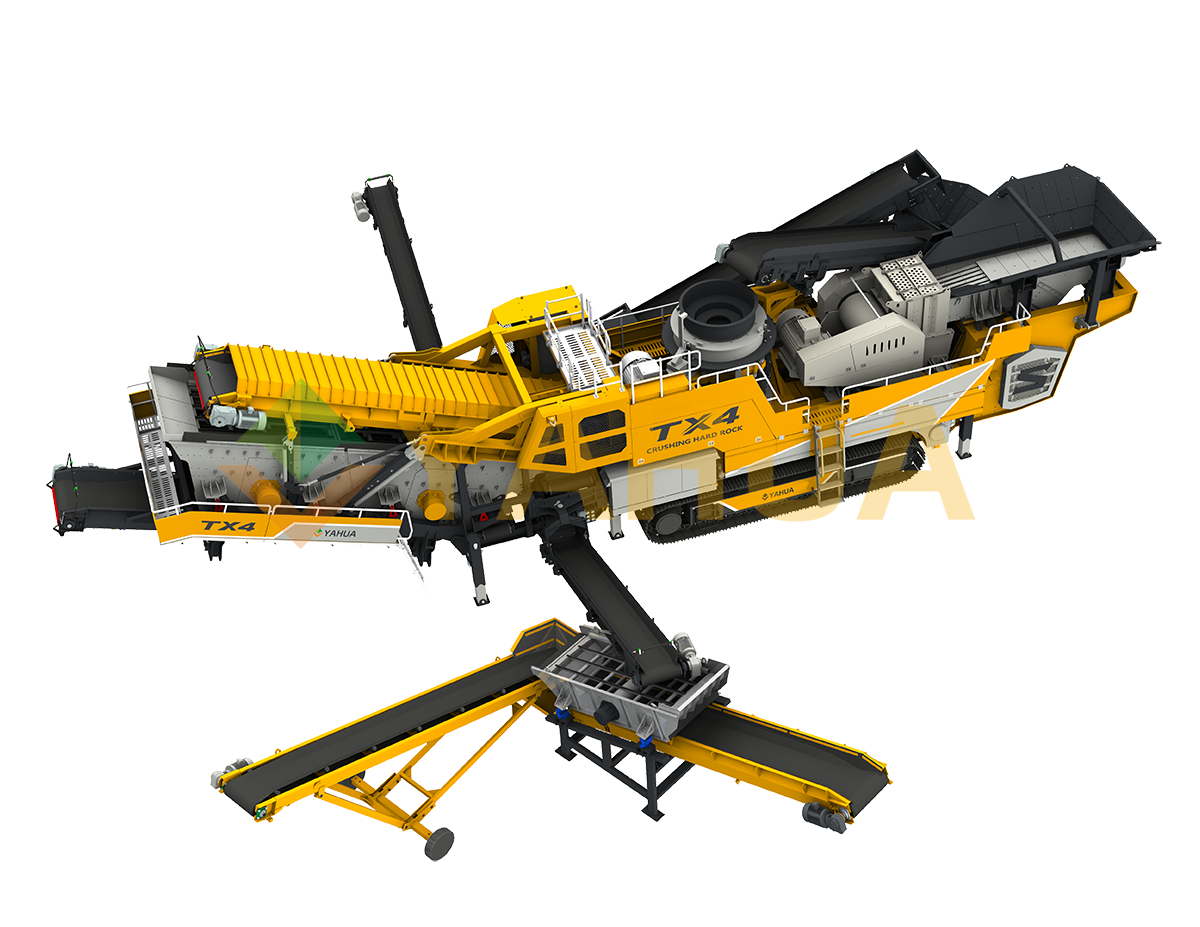

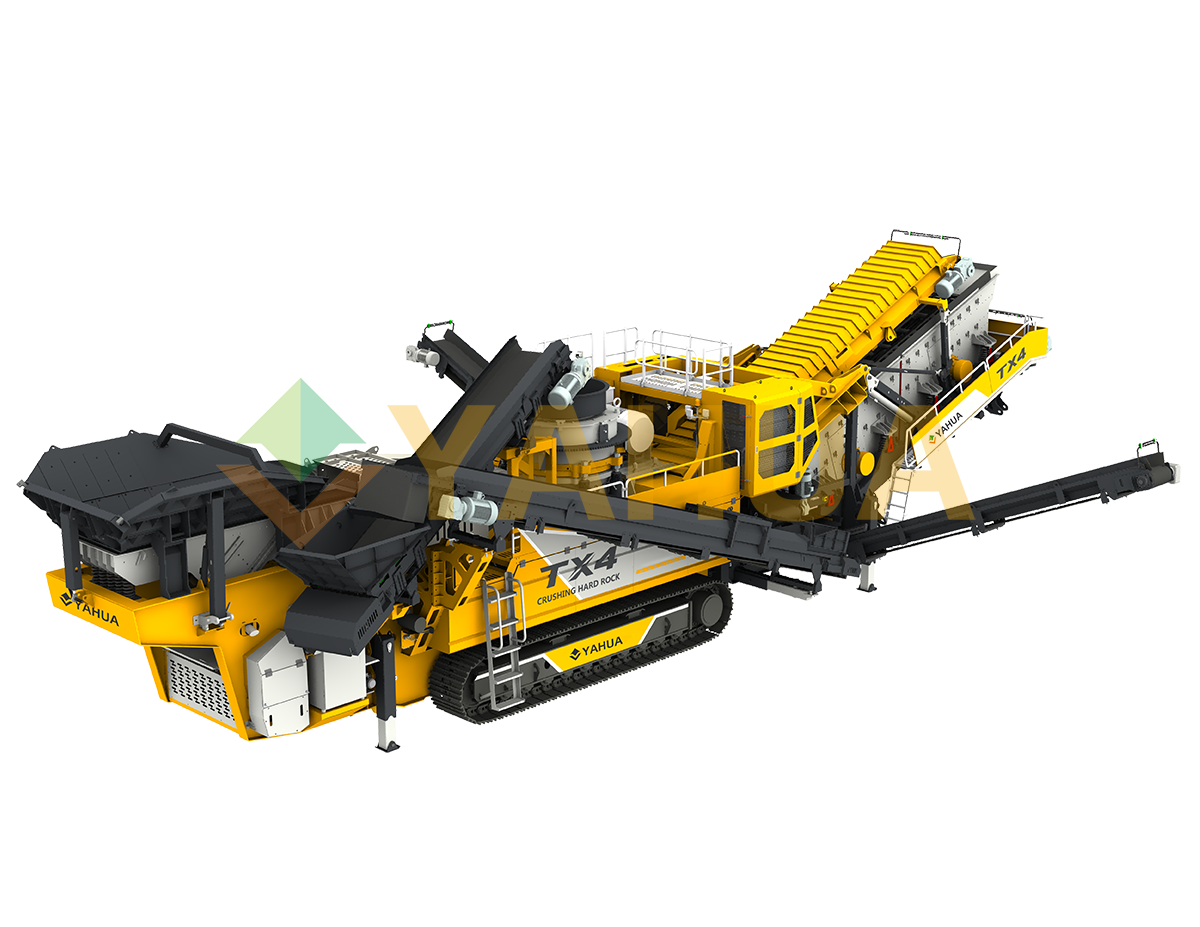

TX4 Four Machine Integrated Tracked Mobile Crushing and Screening Machine

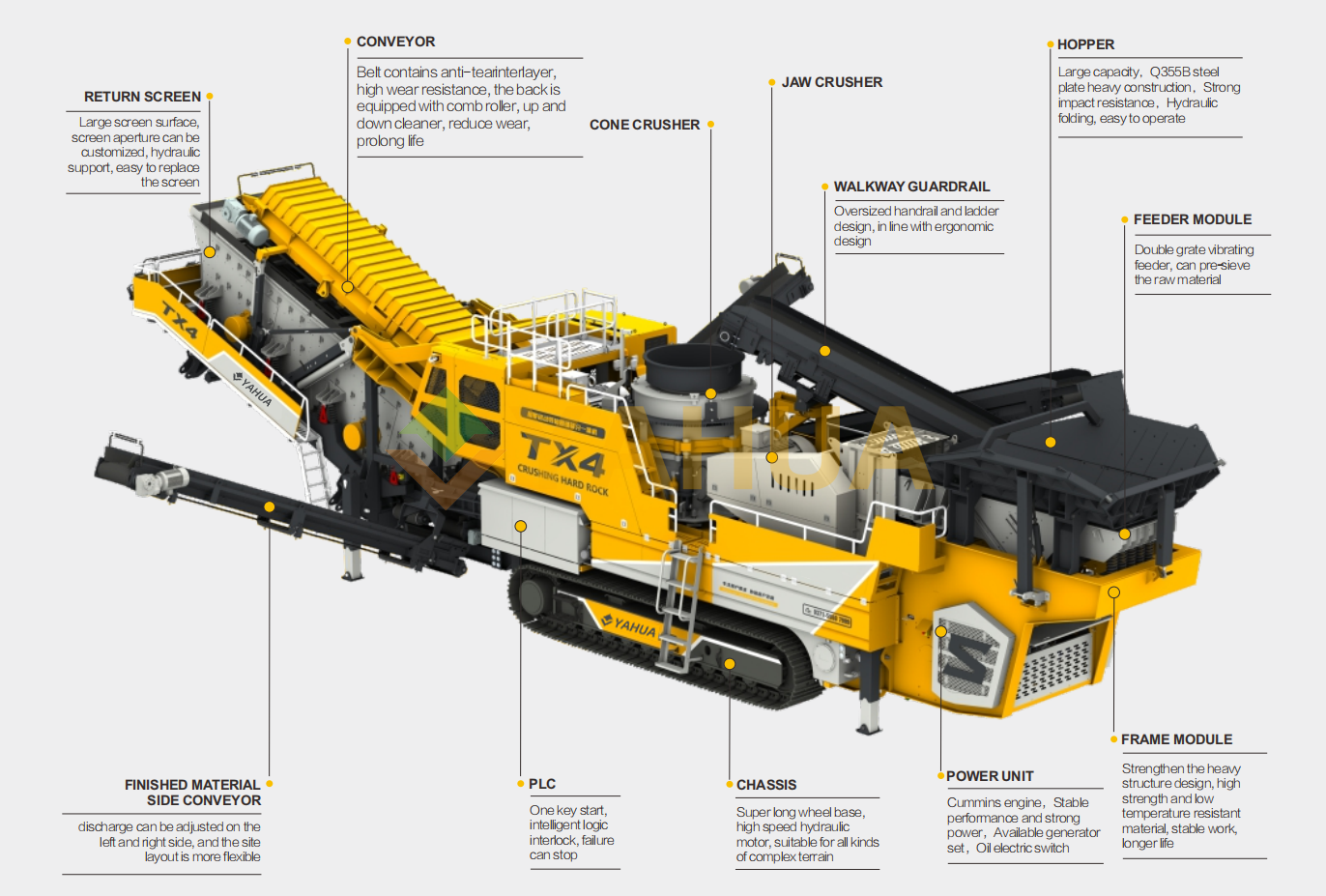

The TX4 four machine integrated tracked mobile crushing and screening machine is an efficient integrated design in the field of crawler mobile hard rock crushing and screening. It creatively integrates four units: vibration feeder, jaw crusher, multi cylinder hydraulic cone crusher, and three-layer double stage screen through innovative structural design. It not only achieves the screening effect of the split hard rock crushing production line, but also perfectly combines with convenient mobility and intelligent production,

The complete crushing and screening stage of high hard stone materials under various working conditions such as metal and non-metal ores, construction waste, construction aggregate production, highways/railways, road and bridge construction, etc

chulinengli:200-400 (t/h)
power:452 (KW)
  Learn more +
telephone:
+86-13598092101
Product Details

The TX4 four machine integrated tracked mobile crushing and screening machine is an efficient integrated design in the field of crawler mobile hard rock crushing and screening. It creatively integrates four units: vibration feeder, jaw crusher, multi cylinder hydraulic cone crusher, and three-layer double stage screen through innovative structural design. It not only achieves the screening effect of the split hard rock crushing production line, but also perfectly combines with convenient mobility and intelligent production,


Product parameters


ModelTX4

Feeder

Feeding height(mm)4100
Feeder width × length(mm)1100×3737
Power(kw)2×3.7kw
Return screen (double segment)
layer number of mesh3
Vibrating screen width × length(mm)2000×2500/2000×3500
Power(kw)4×6kw
Conveyor

Main conveyor width × length (mm)

1200×15500

Finished material side conveyor width × length (mm)500×6125
Under screen conveyor width × length (mm)1200×7570
Return conveyor1 width × length (mm)1000×9760
Return conveyor2 width × length (mm)1000×6260

Parameters

Total power(kw)452
Total Weight(t)200-400
Speed(km/h)0.6-1
Total Weight(t)115
Transportation size(mm)20700×5100×4000
