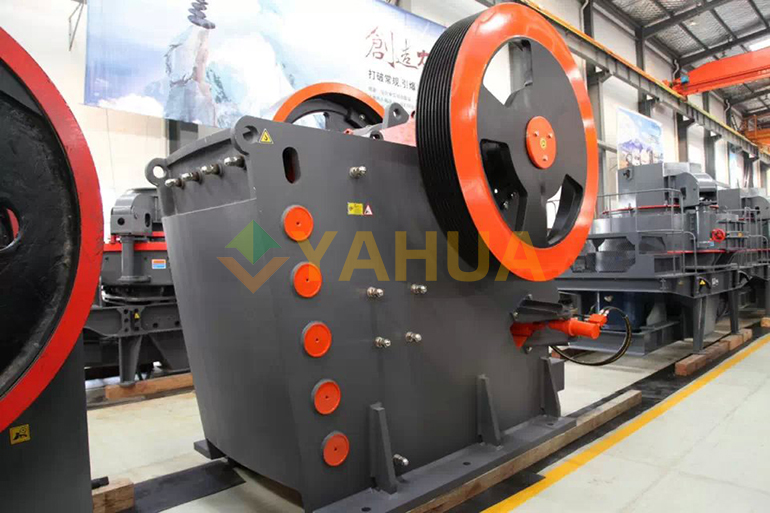

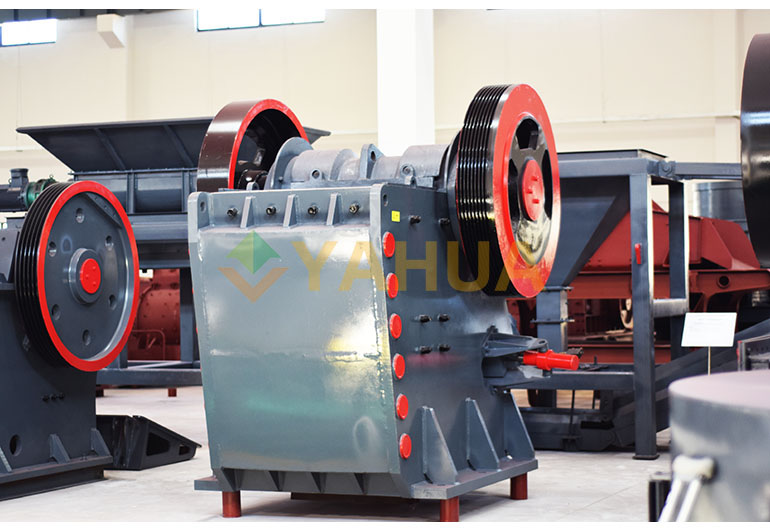

European type jaw crusher

European type jaw crusher is also called PEW jaw crusher, PEW new jaw crusher. European type jaw crusher is a new generation of crusher developed on the basis of PE jaw crusher. European type jaw crusher has the advantages of simple adjustment, strong pressure resistance, long service life and high output.

  Learn more +
telephone:
+86-13598092101
Product Details

European type jaw crusher is also called PEW jaw crusher, PEW new jaw crusher. European type jaw crusher is a new generation of crusher developed on the basis of PE jaw crusher. European type jaw crusher has the advantages of simple adjustment, strong pressure resistance, long service life and high output.

【Capacity】:15-700 TPH

【Feeding size】:200-1000mm

【Output size】:20-275mm



Application Areas:

        It is widely used in the crushing of various ores and bulk materials in industries such as mining and smelting, building materials, roads, railways, water conservancy and chemical industry. (For more application areas, please click "Free Consultation")


Adaptable materials:

        River pebbles, granite, basalt, iron ore, limestone, quartz, diabase, iron ore, gold ore, copper ore, etc., various ores and rocks with compressive strength not exceeding 320Mpa


Equipment Features:

        1.Superb reliability

                The world-class manufacturing technology and high-end materials are used, such as the movable jaw assembly is made of high-quality steel castings, and the heavy eccentric shaft is made of forged billets, making the equipment extremely reliable and durable.

        2.Higher strength

                Finite element analysis technology is used, and the integral cast steel bearing seat ensures full cooperation with the frame, which greatly enhances the radial strength of the bearing seat and makes the equipment have higher strength.

        3.Safe and fast adjustment

                The crushing chamber adopts a symmetrical "V" shape structure, and the discharge port adopts a wedge adjustment device, which makes the adjustment simpler, safer and faster

        4.Stronger carrying capacity

                Larger and more durable eccentric shaft bearings and toothed guard plates provide greater load-bearing capacity, higher output and longer service life.

Working Principle:

        European type jaw crusher is mainly composed of frame part, eccentric shaft rotating part, crushing chamber working part, safety device, discharge opening adjustment device, etc.

        The European version of the jaw crusher adopts the cam-type crushing method. The motor drives the belt and pulley to make the movable jaw swing forward and backward and up and down through the eccentric shaft. When the movable jaw pushes the movable jaw plate to move toward the fixed jaw plate, the material is crushed or split. When the movable jaw and the movable jaw plate retreat under the action of the eccentric shaft and spring, the previously crushed or split material is discharged from the lower discharge port of the jaw plate. As the motor rotates continuously, the movable jaw of the crusher periodically crushes and discharges the material, realizing mass production.

Product parameters

Model

Feeding size(mm)

Max

feeding

Size

(mm)

Discharge port adjustment range(mm)

Processing capacity(t/h)

Eccentric shaft speed

Motor Power

Overall size(mm)

PEW250×1000

250×1000

220

20-40

15-50

330

30

1400×1850×1310

PEW250×1200

250×1200

220

20-40

20-50

330

37

1400×2050×1310

PEW400×600

400×600

350

35-85

15-70

250

37

1920×1460×1840

PEW760

760×1100

640

75-200

150-350

270

110

2600×2500×2200

PEW860

860×1100

720

100-225

200-500

240

132

3300×2320×3120

PEW1100

1100×1200

930

150-275

300-650

210

185

4140×2660×3560
