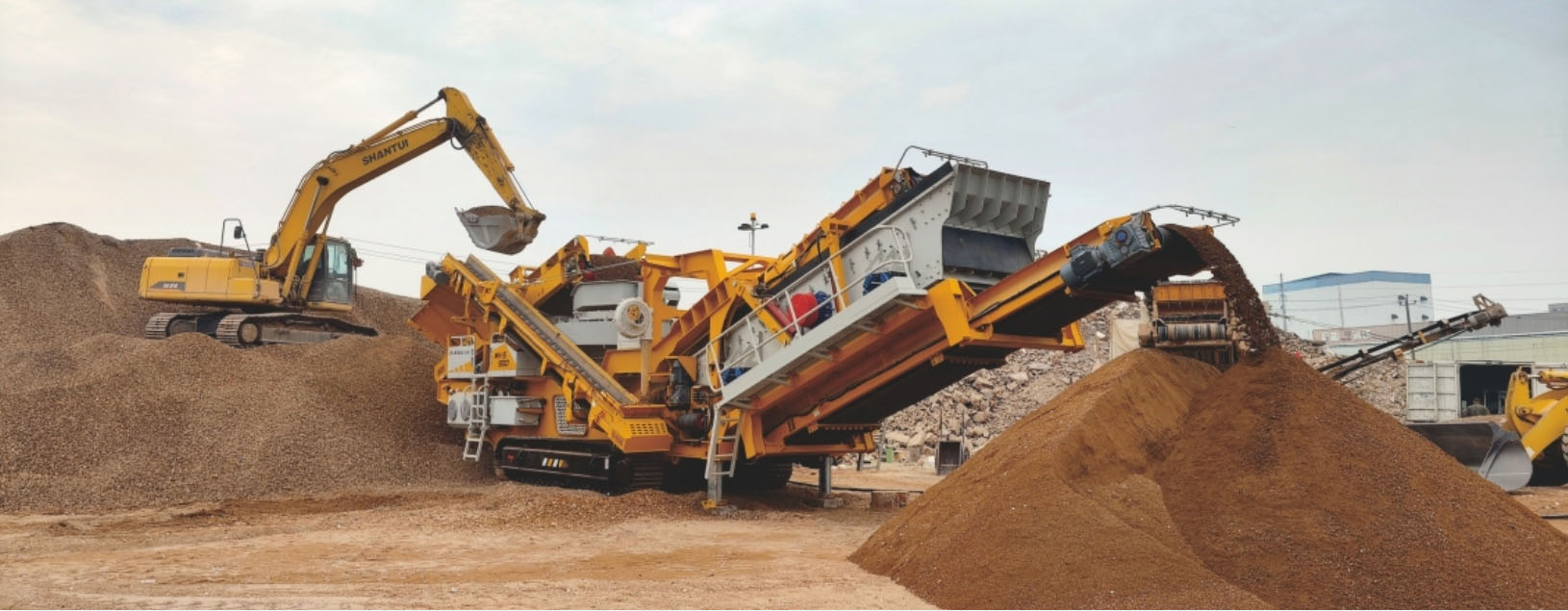

MV-S Series Tracked Mobile Sand maker station adopts a brand new type rotor with two port, a unique sealing structure, large feed size, high sand formation rate, low failure rate, and low energy consumption.
Used in stone reshaping, Sand making, metal and non-metal ore crushing, metallurgical slag and other working conditions.
MV-S Series Tracked Mobile Sand maker station adopts a brand new type rotor with two port, a unique sealing structure, large feed size, high sand formation rate, low failure rate, and low energy consumption.

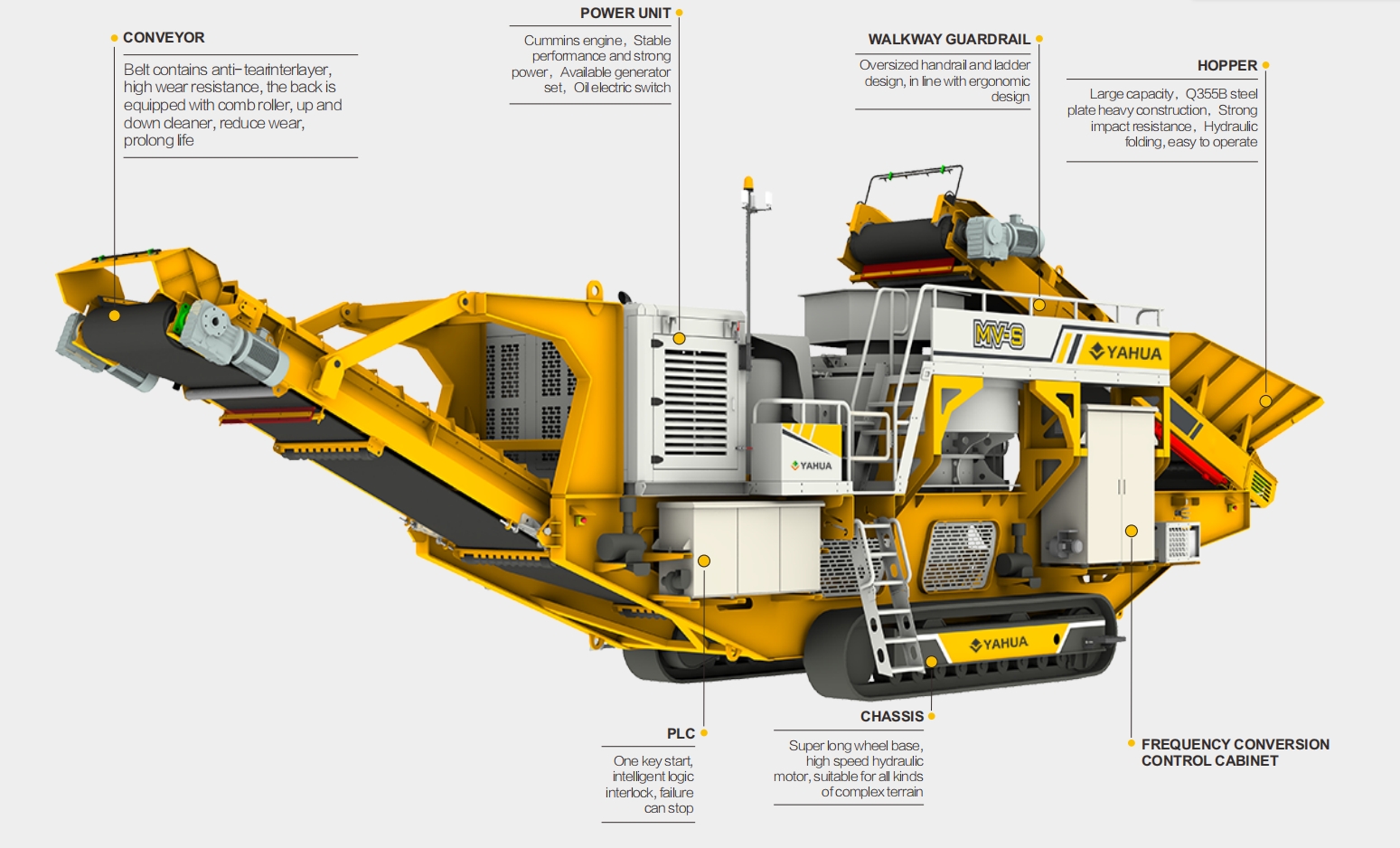

The type machine can meet the different needs with reshaping and sand maker. The whole machine is compact, easy to transfer, higher production, lower wearing, high reliability, and PLC intelligent control. There are three power modes to choose from: external power supply, gas-electric hybrid, and full hydraulic drive.
Model | MV-S | MV-SE |
给料设备 | ||
---|---|---|
Volume(m³) | 5 | 5 |
Feeding height(mm) | 2700 | 2700 |
Max Feed(mm) | 100 | 100 |
Processing capacity(t/h) | 500 | 500 |
Crusher | ||
Diameter of rotor(mm) | 1222 | 1222 |
Thickness of the rotor(mm) | 220 | 220 |
Host power(kw) | 400 | 400 |
Conveyor | ||
Main conveyor width(mm) | 1200 | 1200 |
Finished conveyor Stacking Height(mm) | 1200 | 1200 |
Feeding conveyor width(mm) | 3363 | 3363 |
Parameters | ||
Total power(kw) | 434 | 434 |
Speed(km/h) | 100-500 | 100-500 |
Total Weight(t) | 0.6-1 | 0.6-1 |
Processing capacity(t/h) | 45 | 55 |
Transportation size(mm) | 17588×3545×3868 | 20542×3299×3976 |
