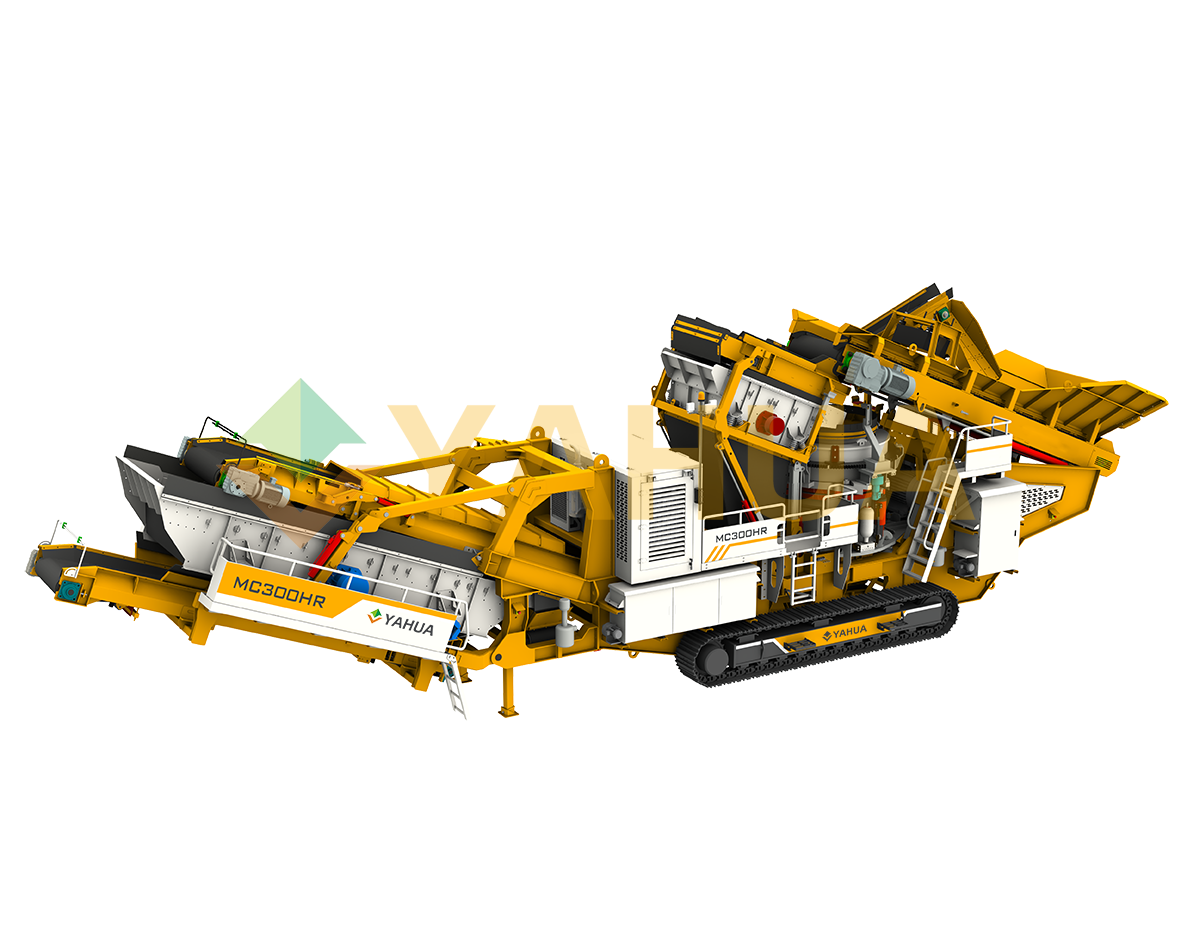

MC Series Tracked Mobile Cone Crusher Station

MC Series Tracked Mobile Cone Crusher Station uses a multi cylinder hydraulic cone crusher as the main equipment, adopting the principle of laminated crushing. The finished product has good particle shape and large production.

Fine crushing stages of high hardness materials under various working conditions such as metal and non-metal ores, construction waste, construction aggregate production, highways/railways, road and bridge construction, etc .

chulinengli:150-495 (t/h)
power:100-338.7 (KW)
  Learn more +
telephone:
+86-13598092101
Product Details

MC Series Tracked Mobile Cone Crusher Station uses a multi cylinder hydraulic cone crusher as the main equipment, adopting the principle of laminated crushing. The finished product has good particle shape and large production.

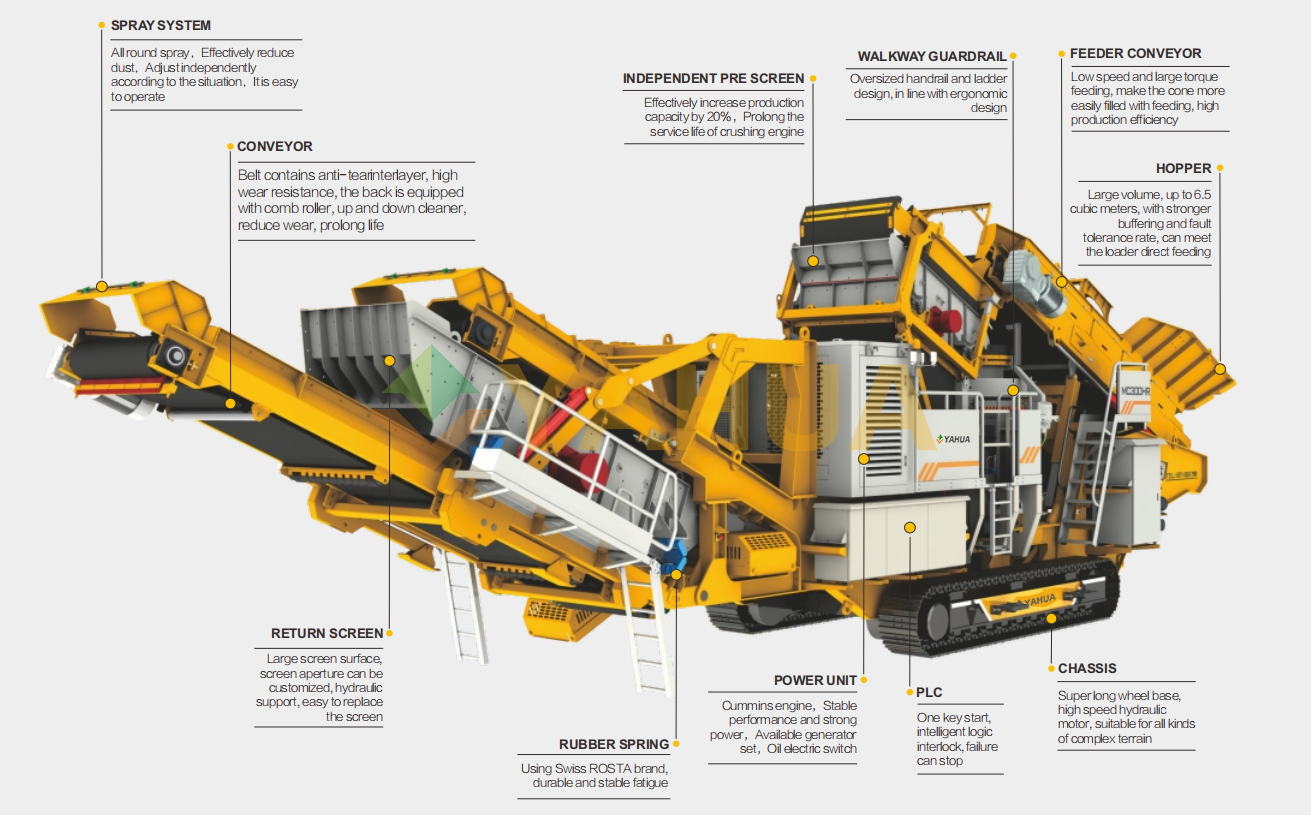

Equipped a high torque and slow rate feeder, which provides uniform feeding for cone crusher. Unique intelligent pre-screening system to improve crushing efficiency. Optional return screening system, iron removal device, and spray device.



The whole machine is compact, easy to transfer, higher production, lower wearing, high reliability, and PLC intelligent control. There are three power modes to choose from: external power supply, gas-electric hybrid, and full hydraulic drive.


Product parameters
ModelMC-300SMC-300SRMC-300HMC-300HREMC-300HR
Feed
Volume(m³)6.56.56.56.56.5
Feeding height(mm)28702870287028702870
Max Feed(mm)225225225225225
Processing capacity(t/h)500500500500500
Crusher
typeSingle cylinderSingle cylinderSingle cylinderMulti-cylinderMulti-cylinder
Vibrating screen length×width(mm)/1540×3600/1540×36001540×3600
layer number of mesh/1/11
Discharge Range(mm)25-5425-5410-4510-4510-45
Conveyor
Main conveyor width(mm)12001200120012001200
Finished conveyor Stacking Height(mm)500500500500500
Width of conveyor belt(mm)500500500500500
Return conveyor width(mm)12001200120012001200
Finished conveyor width(mm)34193419341934193419
Parameters
host power(kw)308.7338.7308.7338.7338.7
Total power(kw)250250250250250
Speed(km/h)290-495290-495150-430150-430150-430
Total Weight(t)0.6-10.6-10.6-10.6-10.6-1
Processing capacity(t/h)5257556460
Transportation size(mm)13850×3200×380018357×3300×380014850×3200×380019247×3070×373119247×3070×3731
