MI Series Tracked Mobile impact crusher station adopts European type hydraulic impact crusher as the main equipment. Optional return screening system, iron removal device, and spray device. This station is mainly for the primary and second stage crushing of stone.

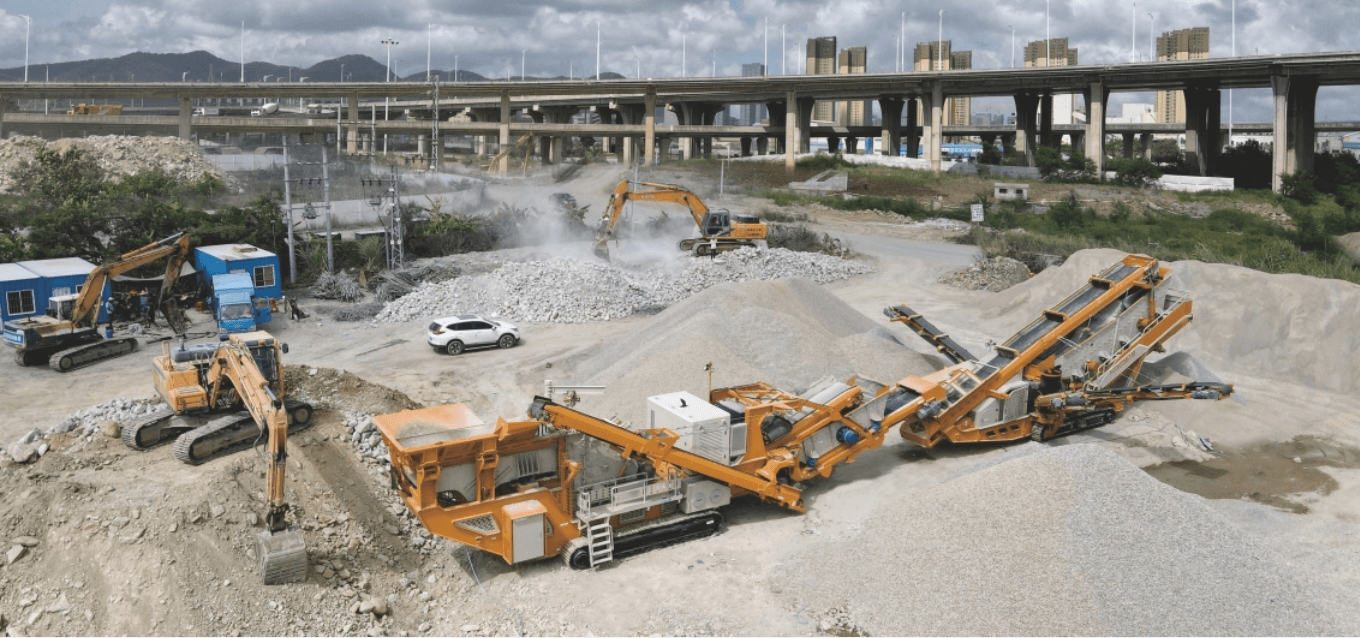

Primary and second stage crushing of high hardness materials under various working conditions such as, construction waste, construction aggregate production, highways/railways, road and bridge construction, etc .

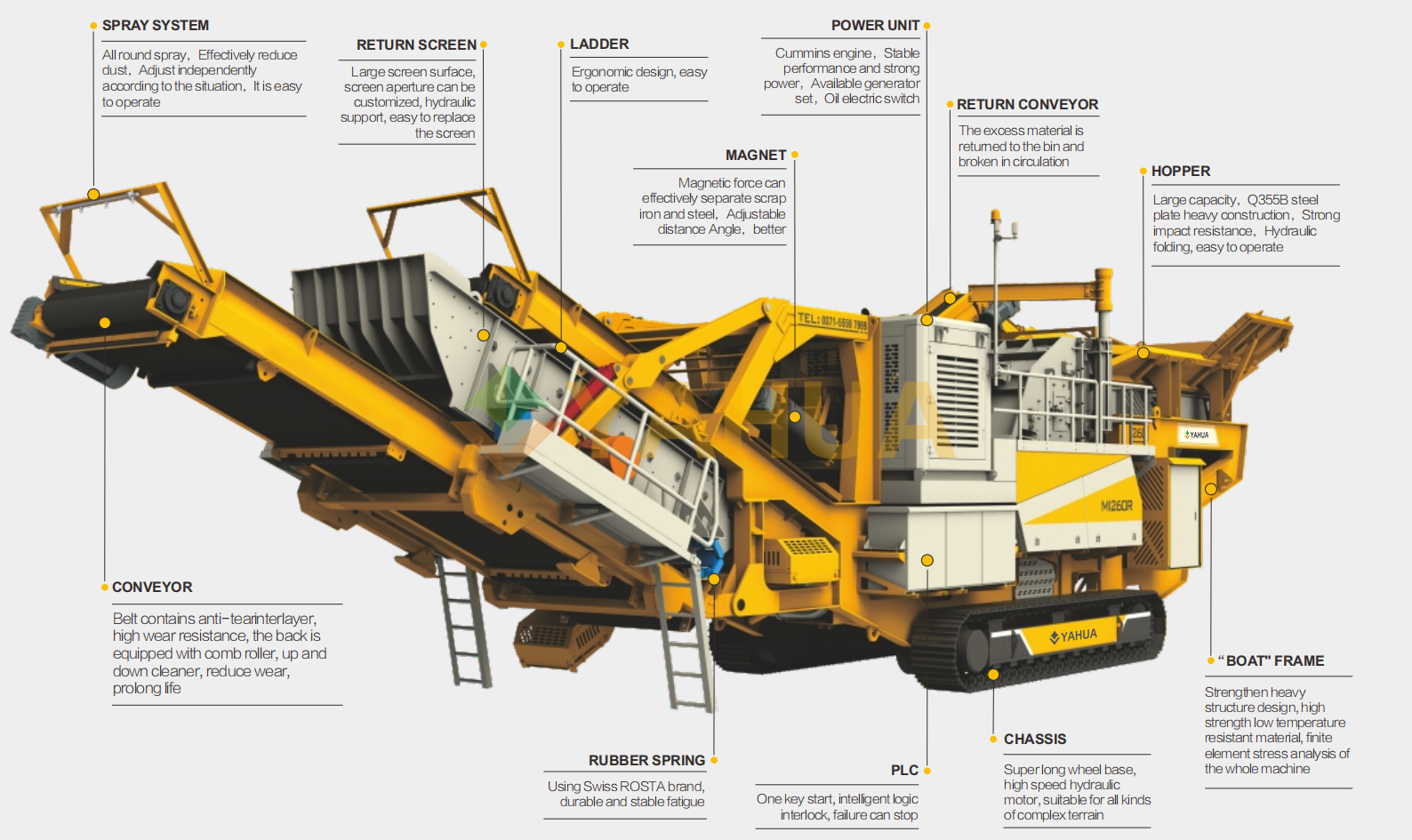

MI Series Tracked Mobile impact crusher station adopts European type hydraulic impact crusher as the main equipment. Optional return screening system, iron removal device, and spray device.
This station is mainly for the primary and second stage crushing of stone.

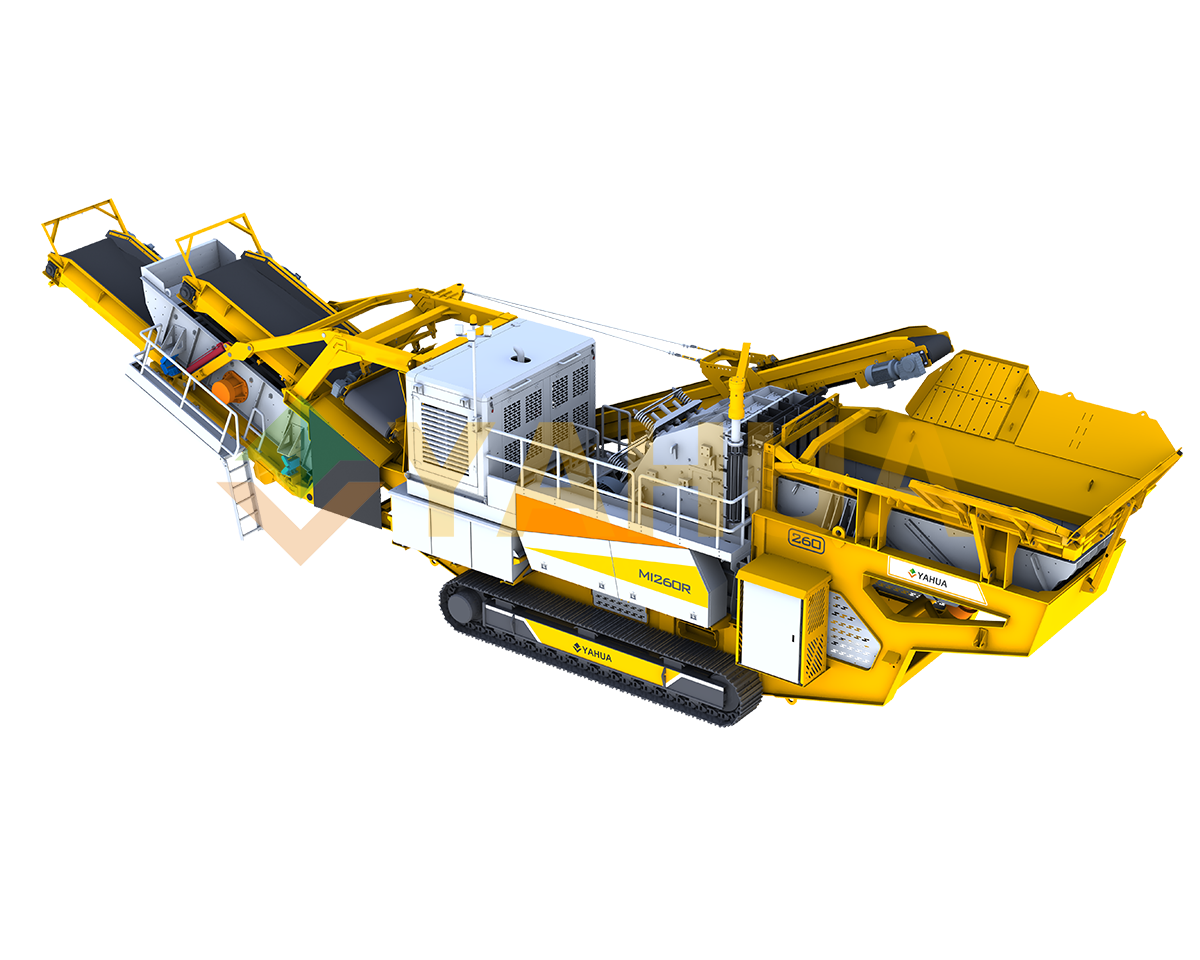

The whole machine is compact, easy to transfer, higher production, lower wearing, high reliability, and PLC intelligent control. There are three power modes to choose from: external power supply, gas-electric hybrid, and full hydraulic drive.
Model | MI-150R | MI-260R | MI-350RE | MI-350R | MI-550 |
Model | |||||
---|---|---|---|---|---|
Volume(m³) | 4 | 7 | 7 | 7 | 9 |
Feeding height(mm) | 4200 | 4250 | 4250 | 4250 | 4500 |
Max Feed(mm) | 550 | 600 | 600 | 600 | 800 |
Processing capacity(t/h) | 200 | 300 | 400 | 400 | 600 |
Crusher | |||||
Type | MIX | MIX2 | MIX3 | MIX3 | MIX4 |
Vibrating screen length×width(mm) | 3700×1200 | 3600×1540 | 5000×1740 | 5000×1740 | / |
layer number of mesh | 1 | 1 | 1 | 1 | / |
Discharge Range(mm) | 25-100 | 25-100 | 25-100 | 25-100 | 25-100 |
Conveyor | |||||
Main conveyor width(mm) | 1000 | 1200 | 1200 | 1200 | 1200 |
Transfer conveyor width(mm) | 500 | 500 | 500 | 500 | 500 |
Return conveyor width(mm) | 500 | 500 | 500 | 500 | 500 |
Finished conveyor width(mm) | 1000 | 1200 | 1200 | 1200 | 1200 |
Finished conveyor Stacking Height(mm) | 3200 | 3471 | 3449 | 3449 | 3200 |
Parameters | |||||
Total power(kw) | 217.2 | 265.6 | 347.2 | 347.2 | 415.7 |
host power(kw) | 160 | 200 | 280 | 280 | 375 |
Processing capacity(t/h) | 100-200 | 160-350 | 250-500 | 250-500 | 400-600 |
Speed(km/h) | 0.6-1 | 0.6-1 | 0.6-1 | 0.6-1 | 0.6-1 |
Total Weight(t) | 48 | 55 | 65 | 61 | 80 |
Transportation size(mm) | 16600×3200×3800 | 18127×3626×3909 | 18882×3505×3872 | 18882×3505×3872 | 19600×3380×3800 |
