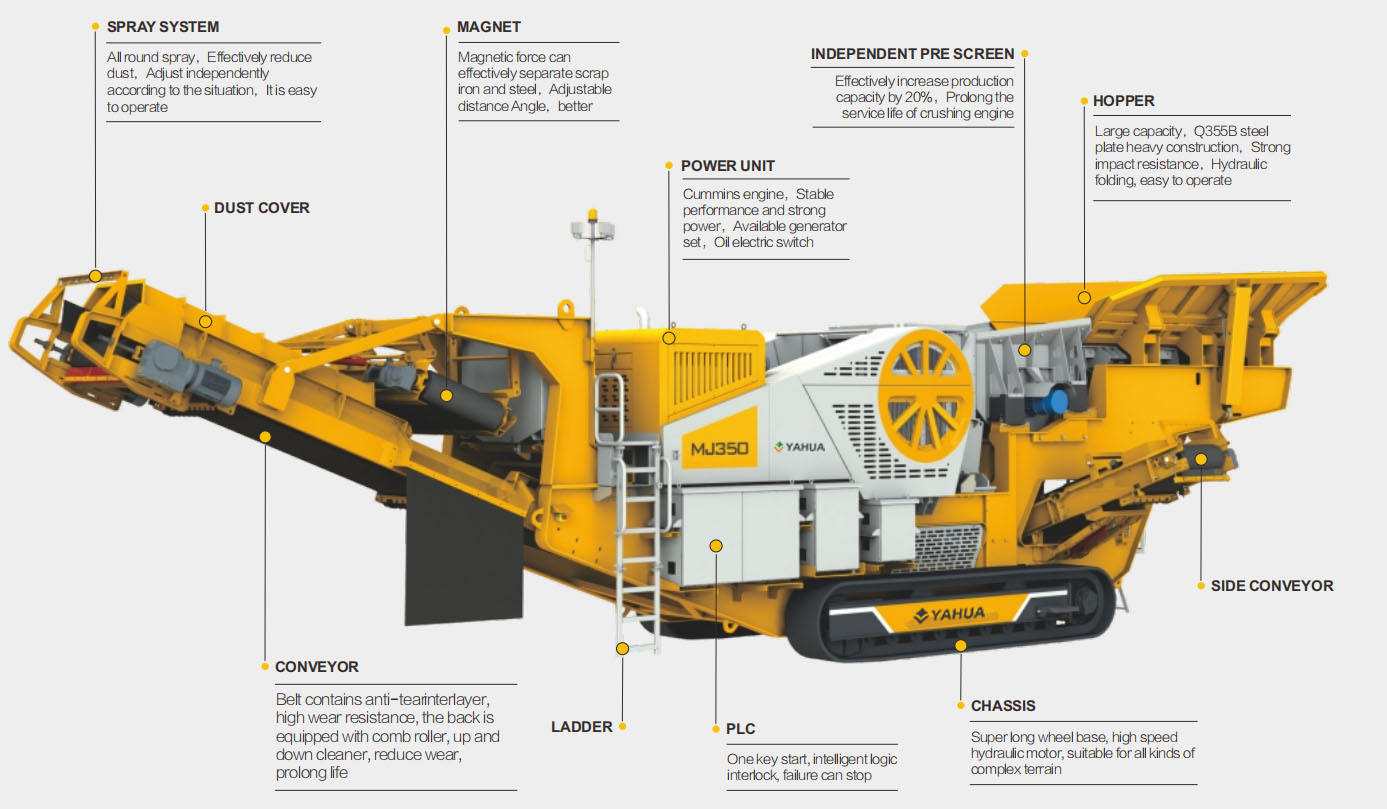

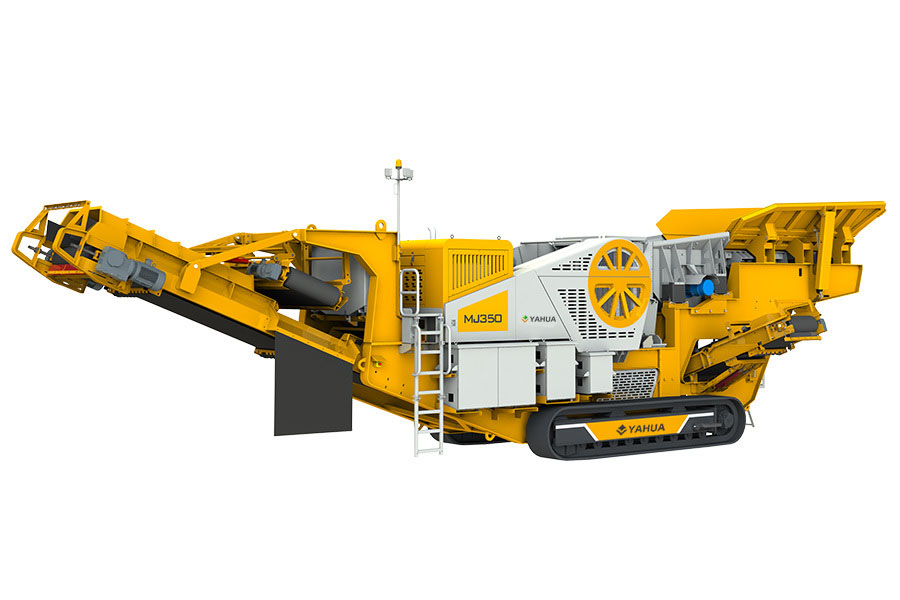

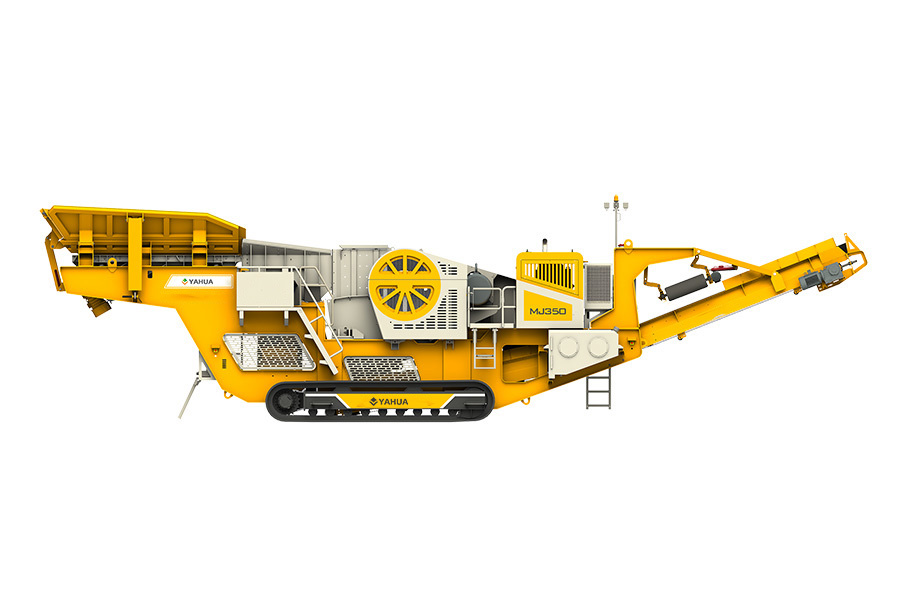

MJ Series Tracked Mobile Jaw Crusher Station, equipped with European type C-series Jaw Crusher, heavy-duty folding hopper, Standard equipped with independent pre-screening system, Optional return screening system, iron removal device, and spray device, mainly for primary crushing of various medium and high hardness stones.

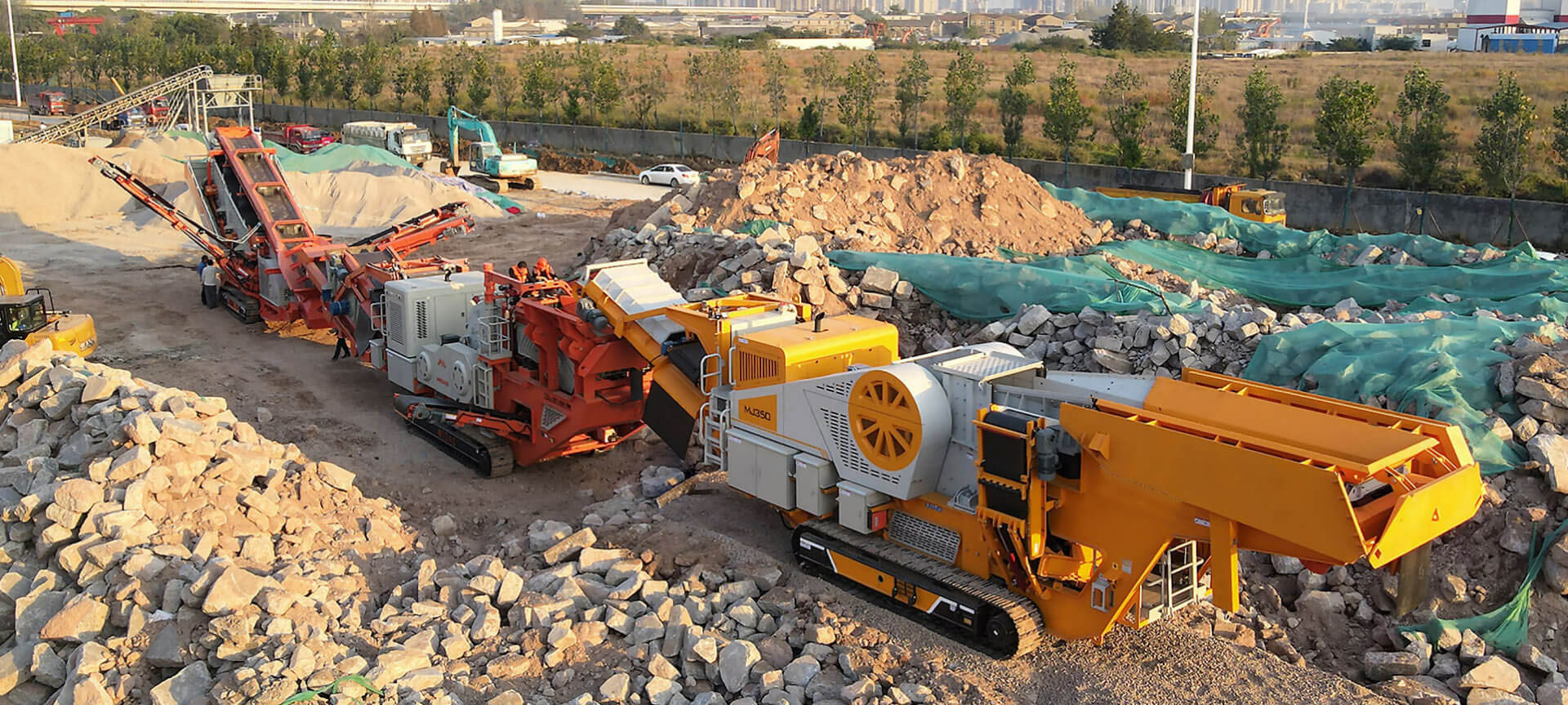

Primary crushing stages of high hard stone materials under various working conditions such as metal and non-metal ores, construction waste, construction aggregate production, highways/railways, road and bridge construction, etc
MJ Series Tracked Mobile Jaw Crusher Station, equipped with European type C-series Jaw Crusher, heavy-duty folding hopper, Standard equipped with independent pre-screening system, Optional return screening system, iron removal device, and spray device, mainly for primary crushing of various medium and high hardness stones.
The feed size is large and the discharge range is wide. Convenient transition, high crushing efficiency, and can choose from three power modes: external power supply, gas-electric hybrid and full hydraulic drive.
Model | MJ-150 | MJ-260 | MJ-350E | MJ-350 | MJ-350S | MJ-550 | |
Feeder | |||||||
---|---|---|---|---|---|---|---|
Volume(m³) | 4 | 6 | 6 | 6 | 6 | 9 | |
Volume(m³) | 4200 | 4350 | 4350 | 4350 | 4350 | 4500 | |
Max Feed(mm) | 460 | 560 | 630 | 630 | 630 | 700 | |
Volume(m³) | 250 | 450 | 450 | 450 | 450 | 650 | |
Crusher | |||||||
type | C93 | C106 | C113 | C113 | C113 | C120 | |
930×580 | 1060×700 | 1130×750 | 1130×750 | 1130×750 | 1200×870 | ||
Discharge Range(mm) | 40-175 | 70-200 | 70-200 | 70-200 | 70-200 | 70-275 | |
Conveyor | |||||||
1000 | 1200 | 1200 | 1200 | 1200 | 1400 | ||
3200 | 3307 | 3307 | 3307 | 3200 | 3200 | ||
Side conveyor width×height(mm) | 650×2196 | 650×2196 | 650×2196 | 650×2196 | / | 650×2196 | |
Driving | Motor reducer drive | Motor reducer drive | Motor reducer drive | Motor reducer drive | Motor reducer drive | Motor reducer drive | |
Parameters | |||||||
Total power(kw) | 106.3 | 149.8 | 149.8 | 149.8 | 138.4 | 197.8 | |
host power(kw) | 75 | 110 | 110 | 110 | 110 | 160 | |
Processing capacity(t/h) | 80-335 | 150-500 | 160-570 | 160-570 | 160-570 | 175-600 | |
Speed(km/h) | 0.6-1 | 0.6-1 | 0.6-1 | 0.6-1 | 0.6-1 | 0.6-1 | |
Total Weight(t) | 40 | 48 | 55.5 | 52 | 44 | 60 | |
Transportation size(mm) | 12450×3000×3500 | 16354×3384×3725 | 16354×3384×3725 | 16354×3384×3725 | 13636×3160×3634 | 17600×3100×3800 |
