Tracked Mobile Impact Crushing and Screening Integrated Machine

The first and second crushing stages of medium soft and hard materials, mining/ore/coal mining, concrete mixing plants, dry powder mortar/power plant desulfurization, quartz sand, reuse of construction waste, road and bridge construction.

chulinengli:160-500(t/h)
power:281.7-400.4 (KW)
  Learn more +
telephone:
+86-13598092101
Product Details

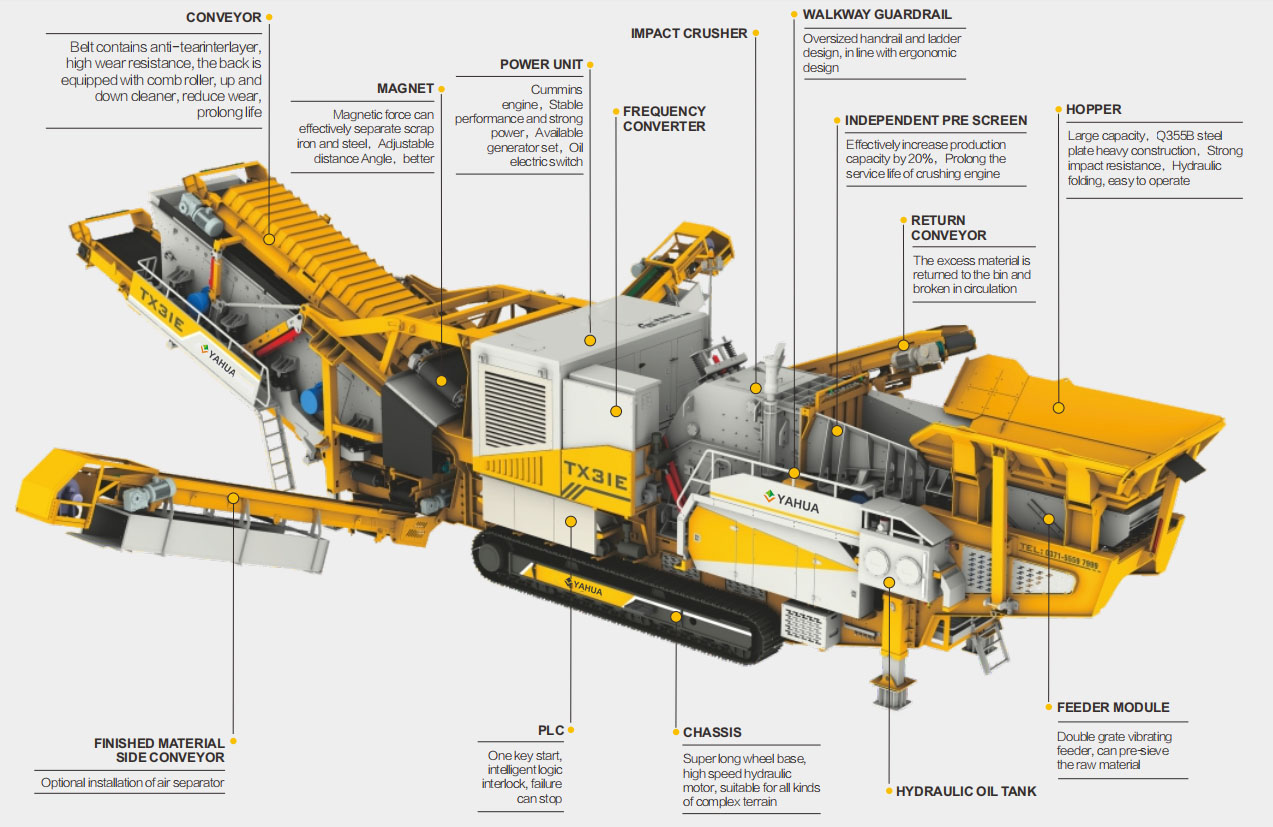

Tracked mobile impact crushing and screening integrated machine, with one machine achieving two processes of crushing and screening, simplifies the process flow, and is suitable for the first and second stage crushing processes of medium soft rocks and construction waste crushing. The whole machine has a wide range of applications, high intelligence, simpler operation, convenient transfer, high crushing efficiency, and can choose from three power modes: external power supply, hybrid oil and electricity, and full hydraulic drive.

Product parameters
Feeder
ModelMX3IE
Feeding height(mm)4400
Feeder width × length(mm)1160×3022
Power(kw)2×3.7
Return screen (double segment)
layer number of mesh3
Vibrating screen width × length(mm)2000×2500/2000×3500
Power(kw)4×6kw
Conveyor
Main conveyor width × length (mm)1200×13900
Finished material side conveyor width × length (mm)500×6124
Return conveyor width × length (mm)500×9187
Under screen conveyor width × length (mm)1200×7572
Parameters
Total power(kw)400.4
Processing capacity(t/h)200-400
Speed(km/h)0.6-1
Total Weight(t)90
Transportation size(mm)21012×3966×4000
