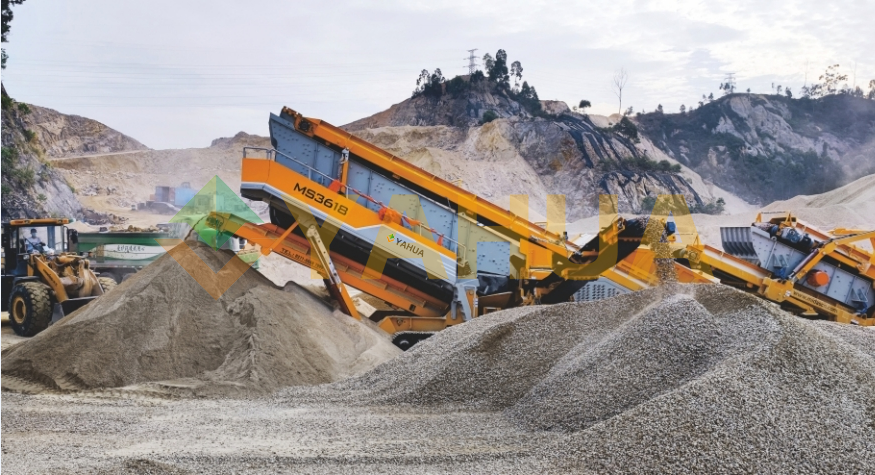

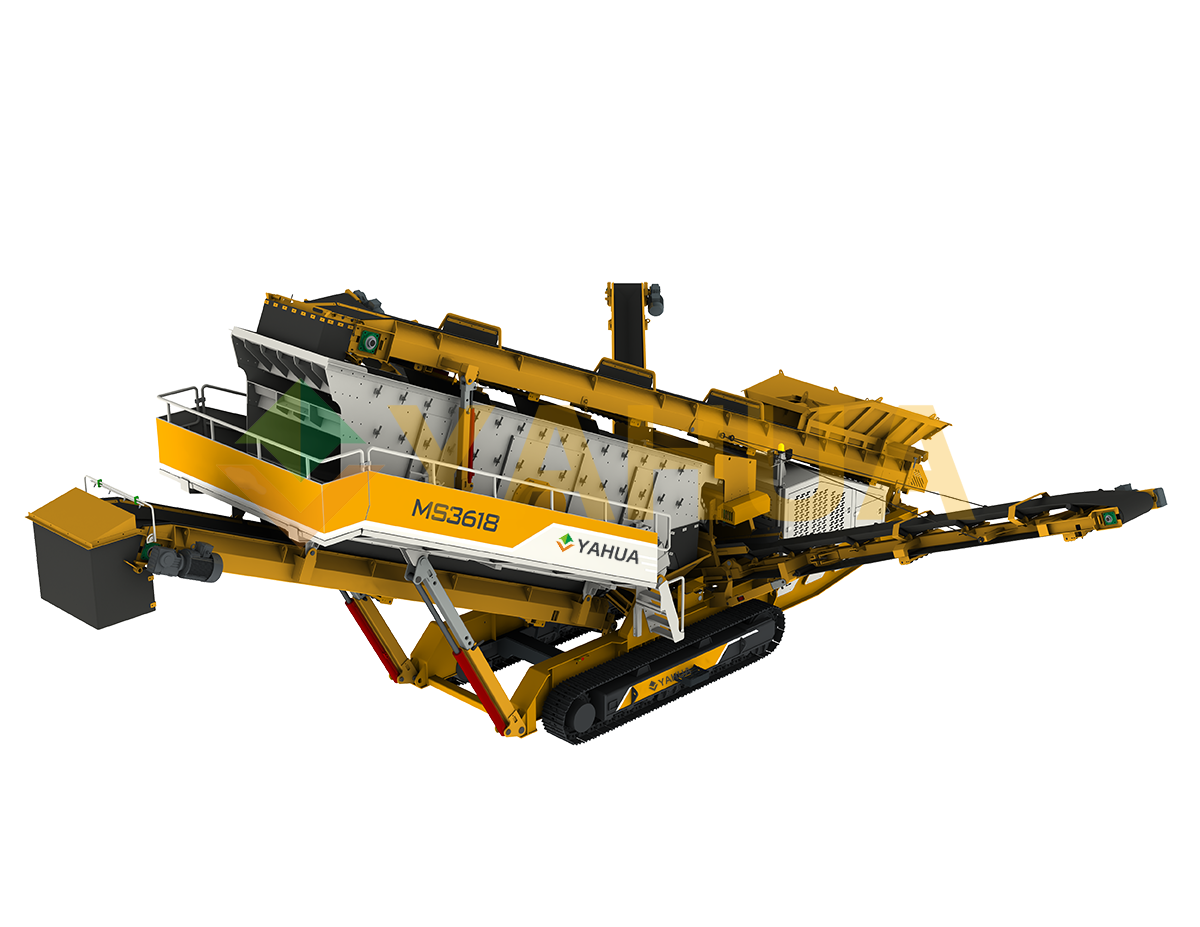

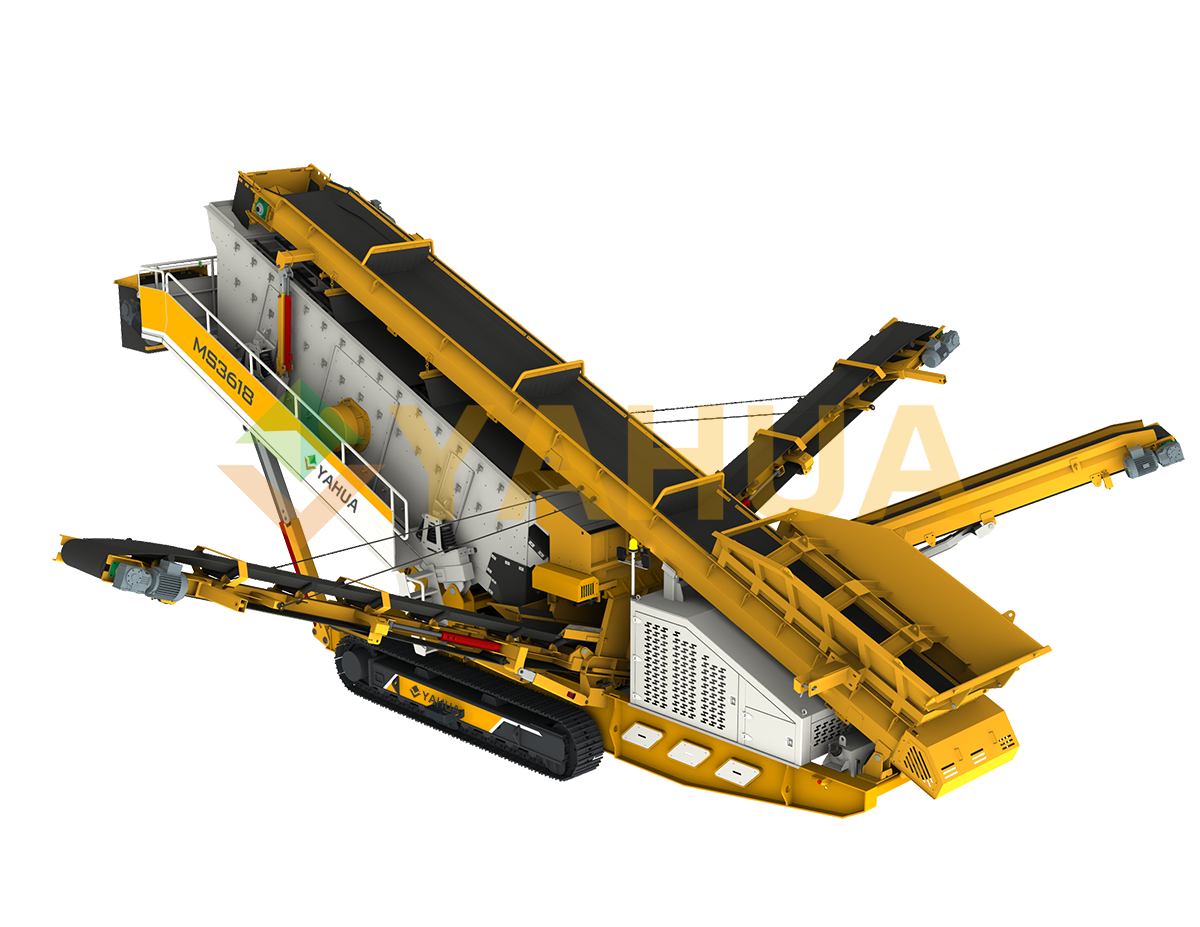

MS Series Double Stage Screening Station is equipped with a double stage vibrating screen, which has a large excitation force and good screening effect. The full series of screening station are equipped with automatic folding belt conveyors which is easy to operate. It’s efficient screening, easy to operate, and can meet the fine screening of different materials. It is suitable for screening finished materials after crushing stage.
Screening stage of different materials under various working conditions such as metal and non-metal ores, construction waste, construction aggregate production, highways/railways, road and bridge construction, etc
MS Series Double Stage Screening Station is equipped with a double stage vibrating screen, which has a large excitation force and good screening effect. The full series of screening station are equipped with automatic folding belt conveyors which is easy to operate. It’s efficient screening, easy to operate, and can meet the fine screening of different materials. It is suitable for screening finished materials after crushing stage.
The whole machine has a wide range of applications, high intelligence, simpler operation, convenient transfer, high screening efficiency, and can choose from three power modes: external power supply, gas-electric hybrid, and full hydraulic drive.
Model | MDS-3618 |
Feeder | |
---|---|
Feeding height(mm) | 2.8 |
Feeding height(mm) | 1979 |
Max Feed(mm) | 200 |
Processing capacity(t/h) | 350 |
Screening | |
layer number of mesh | 3 |
Vibrating screen length×width(mm) | 6000×1800 |
Conveyor | |
Main conveyor width(mm) | 1000 |
Width of conveyor belt(mm) | 650 |
Under screen conveyor width × Stacking Height(mm) | 1200×4399 |
Side 1 belt machine width × Stacking Height(mm) | 500×3650 |
Side 2 belt machine width × Stacking Height(mm) | 650×3755 |
Side 1 belt machine width × Stacking Height(mm) | 650×3603 |
Side 4 belt machine width × Stacking Height(mm) | / |
Parameters | |
Total power(kw) | 74.5 |
Processing capacity(t/h) | 200-500 |
Speed(km/h) | 0.6-1 |
Total Weight(t) | 38 |
Transportation size(mm) | 16468×3366×3776 |
