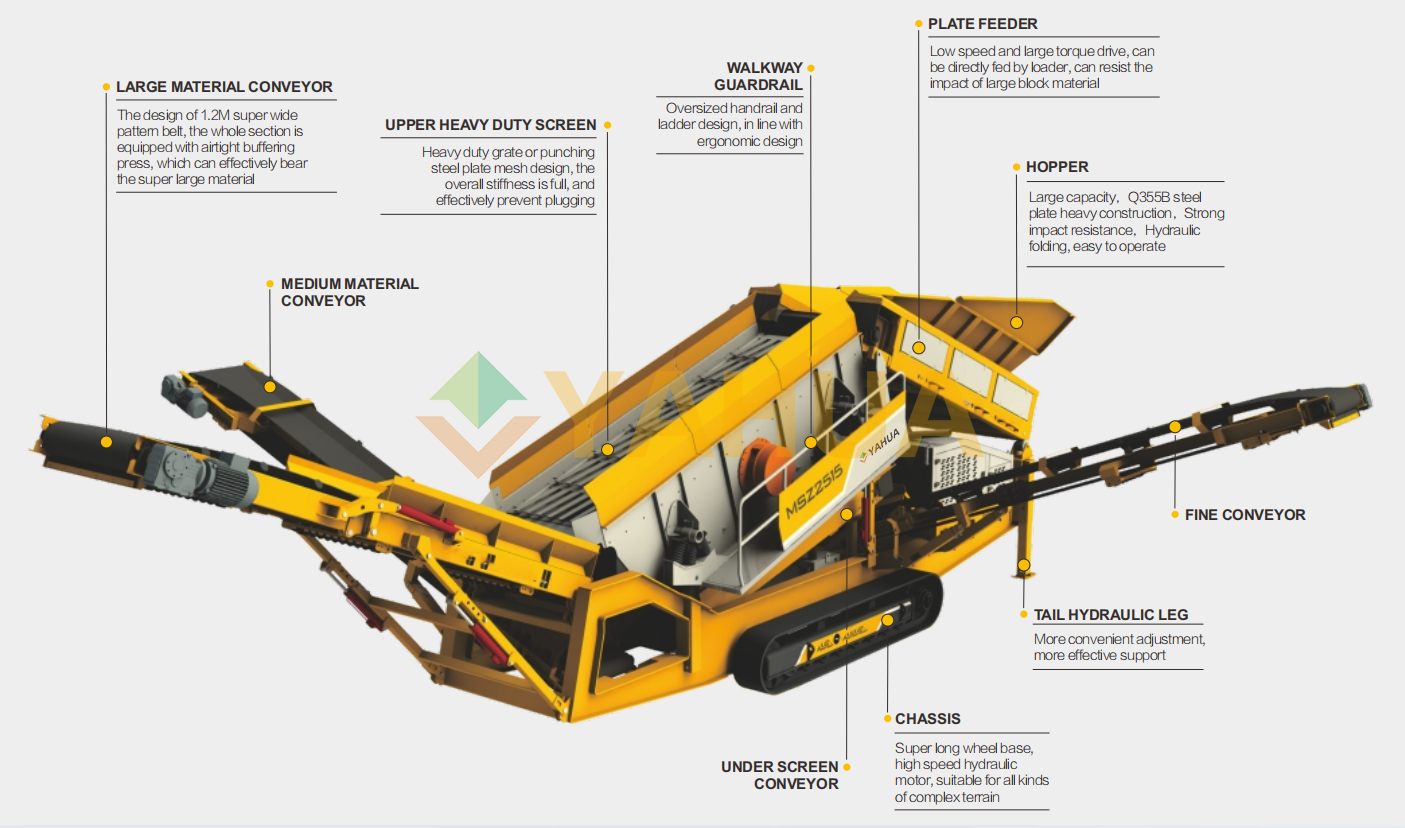

MSZ Series Tracked Mobile Heavy-duty Screening Station is equipped with a high torque apron feeder, heavy-duty bar screen with first layer, and an ultra wide patterned belt conveyor, effectively transfer the oversized materials. It belongs to primary screening and is suitable for special working conditions such as soil-rock separation and primary screening of construction waste.
Primary screening for complex working conditions such as soil-rock separation, mining, construction waster, coal gangue, and construction aggregate production
MSZ Series Tracked Mobile Heavy-duty Screening Station is equipped with a high torque apron feeder, heavy-duty bar screen with first layer, and an ultra wide patterned belt conveyor, effectively transfer the oversized materials. It belongs to primary screening and is suitable for special working conditions such as soil-rock separation and primary screening of construction waste.
The whole machine has a wide range of applications, high intelligence, simpler operation, convenient transfer, high screening efficiency, and can choose from three power modes: external power supply, gas-electric hybrid, and full hydraulic drive.
Model | MSZ-2618 | MSZ-2515E | MSZ-2515 |
Feeder | |||
---|---|---|---|
Volume(m³) | 6.5 | 6.5 | 6.5 |
Feeding height(mm) | 3642 | 3685 | 3685 |
Max Feed(mm) | 500 | 500 | 500 |
Processing capacity(t/h) | 600 | 500 | 500 |
Screening | |||
layer number of mesh | 2 | 2 | 2 |
Vibrating screen length×width(mm) | 6000×1800 | 4800×1550 | 4800×1550 |
Conveyor | |||
Feeding conveyor width(mm) | 1000 | 1000 | 1000 |
Under screen conveyor width (mm) | 1200 | 1200 | 1200 |
Large material conveyor width× length (mm) | 1200×3980 | 1200×3986 | 1200×3986 |
Medium material conveyor width×length (mm) | 800×3235 | 800×3244 | 800×3244 |
Fine conveyor width × length (mm) | 800×3615 | 800×3609 | 800×3609 |
Parameters | |||
Total power(kw) | 74.5 | 70 | 67 |
Processing capacity(t/h) | 280-680 | 250-500 | 250-500 |
Speed(km/h) | 0.6-1 | 0.6-1 | 0.6-1 |
Total Weight(t) | 40 | 33.5 | 32.5 |
Transportation size(mm) | 18000×3500×3700 | 14794×3260×3622 | 14794×3260×3622 |
